Product Information
Specifications
| SKU | SYS-2029BZ-HNR |
| Brand | SUPERMICRO |
Description

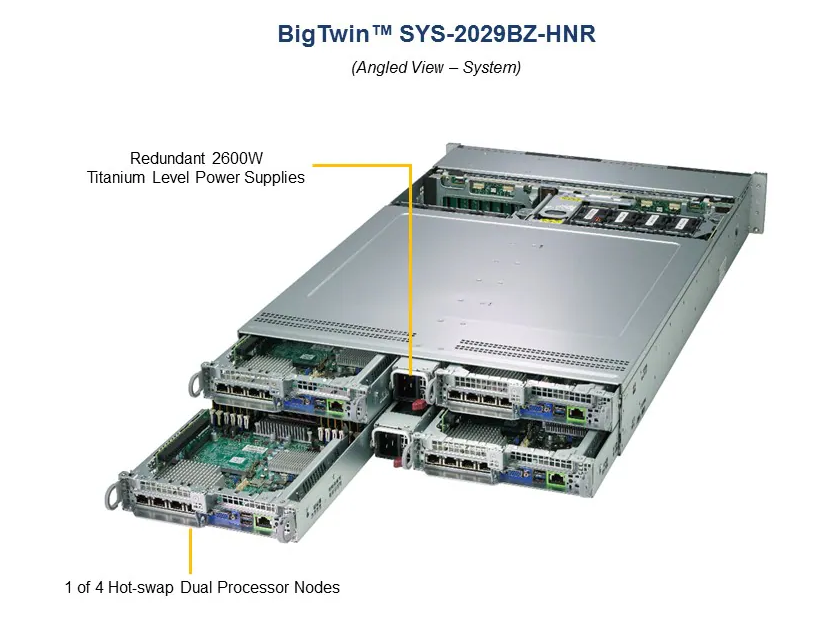

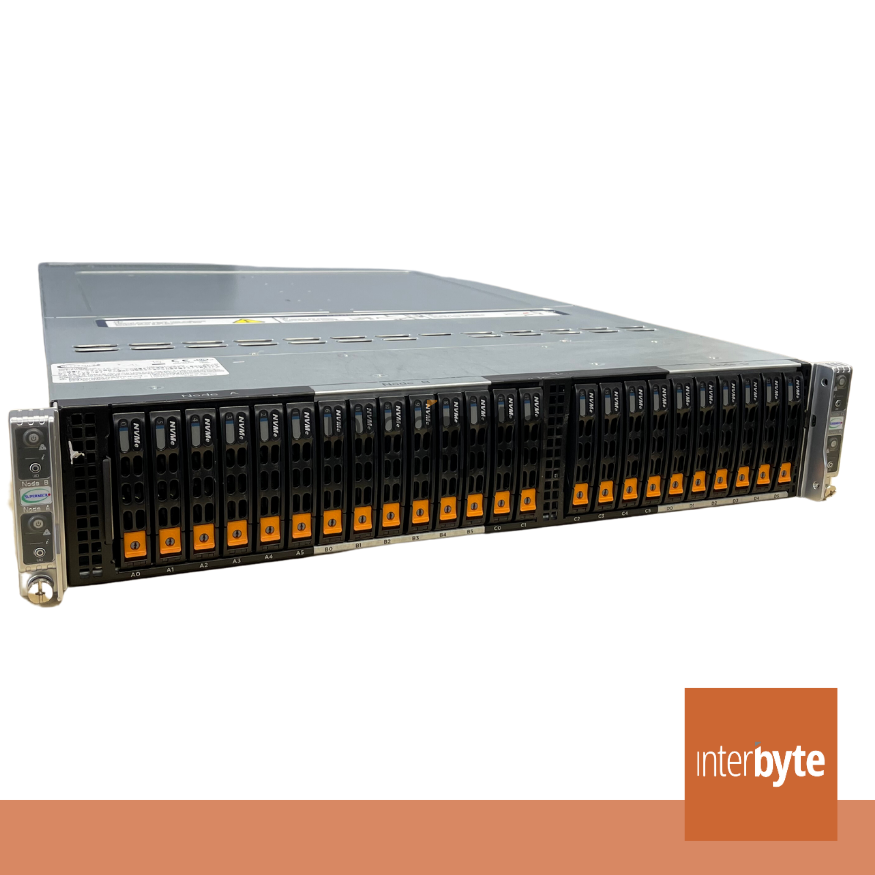

BigTwin 2029BZ-HNR 2U SuperServer
System comes with:
8x 4116 (96-Core) in the system (2 per Node)
384GB DDR4 MEM (96GB Per Node)

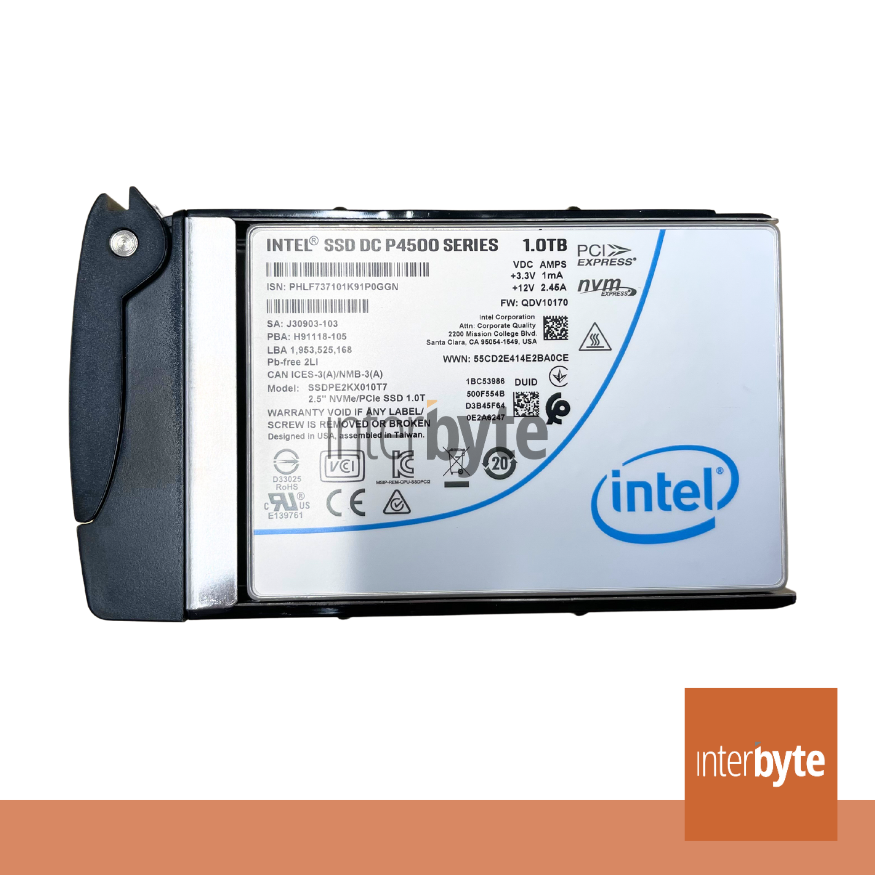

4x Intel SSDPE2KX010T7 1TB 2.5" NVME SSD
4x 256GB M.2 SSD (x1 per node)
2x PWS-2K60A-1R, 1U 2600W Redundant Titanium PWS

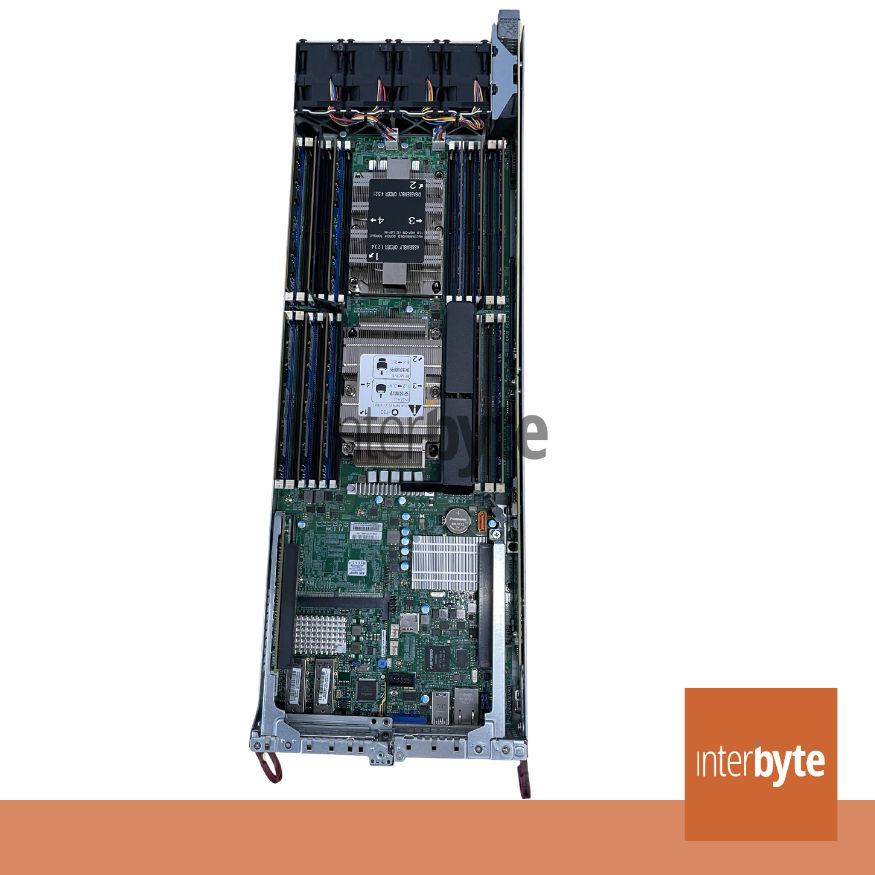

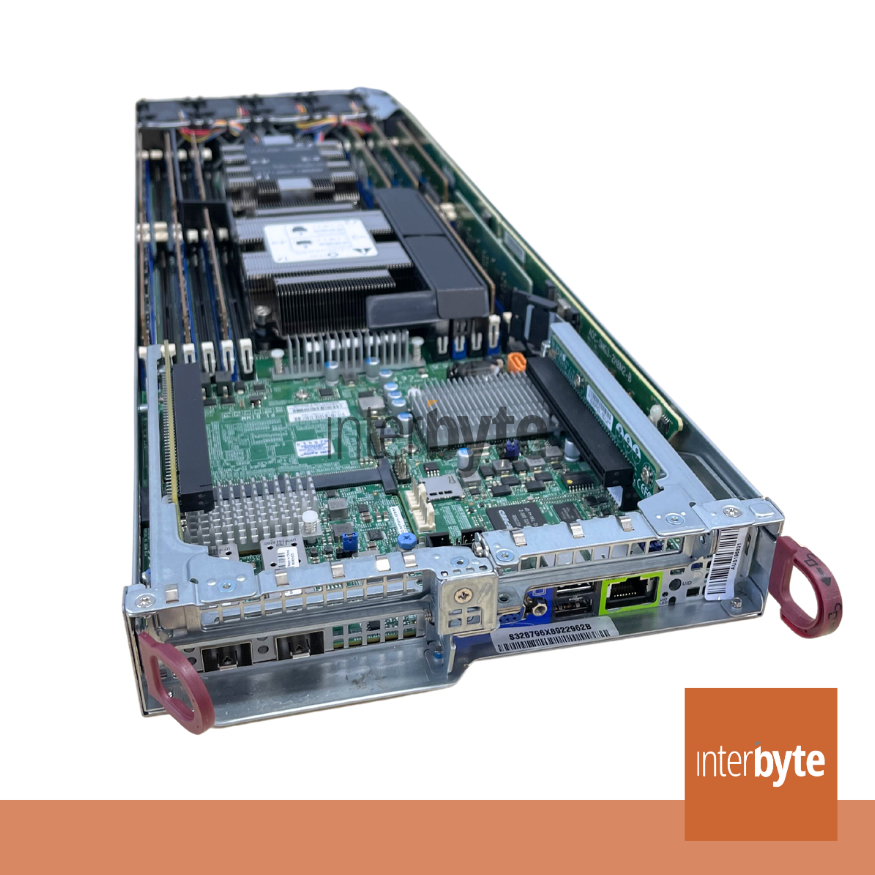

Each Node (product code: X11DPT-BH) Contains from above:
x2 Silver 4116 12 Core
96GB Memory
x1 Micron MTFDDAV256TBN 256GB M.2 SATA SSD
Overall, this is a solid 2U4N design with the Supermicro BigTwin SYS-2029BZ-HNR. Supermicro has managed to fit even more functionality in this version. One gets the equivalent of four full 1U systems in a 2U chassis without sacrificing performance or memory capacity.
System Features:
Motherboard: X11DPT-BH (per node)
Chassis: CSE-217BHQ+-R2K60FP
CPU (per node): Dual Intel Xeon 82xx/62xx/52xx/42xx/32xx or 81xx/61xx/51xx/41xx/31xx processors (in Socket P (LGA 3647)) (Intel Xeon Processor Scalable Family).
Memory (per node): Up to 6 TB of memory with DDR4 up to 2933 MT/s ECC Load Reduced DIMMs (LRDIMM) and Registered DIMMs (RDIMM) in 24 DIMM slots; up to 256 GB; Support for Non-Volatile DIMM (NV-DIMM) and Intel Optane DC Persistent Memory (DCPMM; up to four slots)
Chipset: Intel C621 chipset
Expansion Slots (per node): Two low-profile, PCI-E x16 slots
Storage Drives: Twenty-four hot-swap 2.5" NVMe bays, each node controls six drives (Optional) M.2: Up to two NVMe or SATA (2240/2260/2280) via optional AOC-SMG3-2H8M2-B per node
Power: 2600 W redundant 80Plus Titanium level modules
Cooling (per node): Four 4-cm heavy duty fans, two CPU heatsinks, two air shrouds to direct air flow
Input/Output (per node): USB 3.0: Two ports on the rear I/O panel (USB 0/1) Video: One VGA port DOM: One SuperDOM port
Networking (per node): One SIOM slot (SIOM cards support Ethernet/IB/OPA with speeds ranging from 1G to 100G) One dedicated LAN port for BMC
Form Factor 2U rackmount; (WxHxD) 17.6 x 3.5 x 28.8 in. (447 x 88 x 730 mm
(SYS-2029BZ-HNR)
